The HL775-9S handles premium-capacity operations moving 300-400 tonnes hourly, including large-scale open-pit mining operations, major quarries supplying regional infrastructure projects, substantial earthmoving contracts, and heavy construction sites throughout Southern Africa. Its 4.5 m³ heaped bucket capacity and 20,200 kg bucket breakout force manage dense overburden, hard rock formations, compacted coal seams, and heavy construction materials whilst maintaining efficient work cycles.
The fully automatic power shift transmission delivers four forward speeds and three reverse speeds calibrated for maximum productivity in high-volume applications. First gear achieves 7.0 km/h for precise loading and positioning operations. Second gear reaches 12.3 km/h for general excavating and loading sequences. Third gear attains 25.8 km/h for medium-range material transport. Fourth gear achieves 37.0 km/h for rapid transit across expansive mining sites, enabling efficient material movement typical of large-scale Southern African mineral extraction operations.

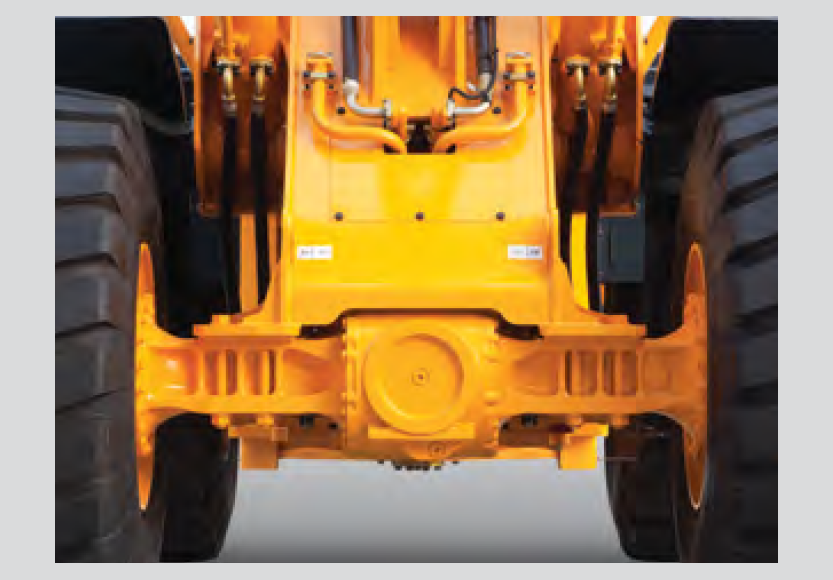

The machine operates effectively with 480 mm ground clearance, 40-degree steering angle (each direction), and 14,595 mm clearance circle. The substantial 3,500 mm wheelbase provides exceptional stability during loading operations whilst the ±11-degree rear axle oscillation (22 degrees total) maintains reliable traction across irregular mining surfaces encountered throughout regional operations.

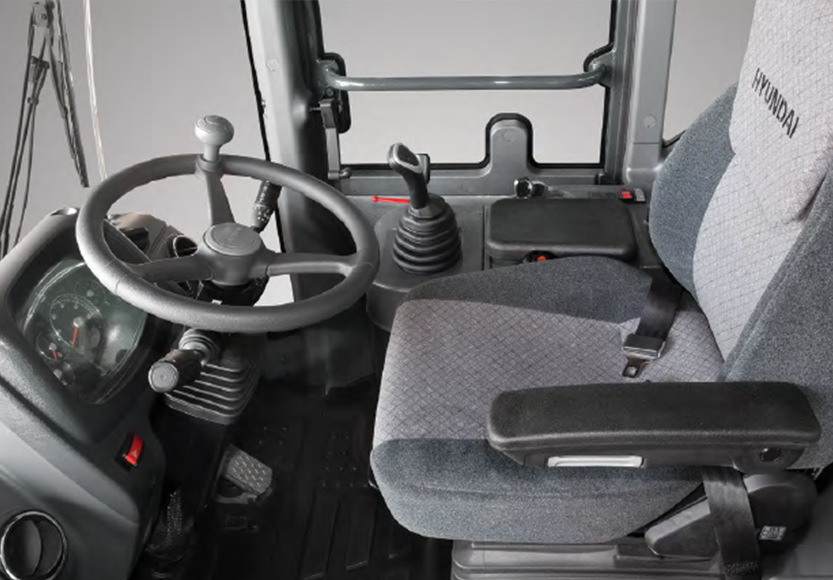

Three selectable engine power modes (Power/Standard/Economy) combined with four transmission shift modes (Manual/Light/Normal/Heavy) and three clutch cut-off settings allow operators to customise machine response for specific site conditions. The optional ride control system features a shock-absorbing accumulator that cushions the boom, improves operator comfort, and reduces material loss during transport across rough terrain typical of Southern African mining operations.
Front end loaders are powerful earthmoving machines engineered to efficiently transport, load, and position materials across large-scale mining, quarrying, and heavy construction environments. The Hyundai HL775-9S generates 213 kW of net power from its Cummins QSM11 Tier 3 engine, processing up to 4.5 m³ of material per bucket cycle in high-volume mining and quarrying operations. We deliver the HL775-9S to Southern African sites with comprehensive technical support and authentic parts availability through our regional branch network.
This 24,100 kg front end loader excels in sustained operations across demanding mining locations and major quarry sites where maximum capacity and operational reliability directly determine productivity outcomes.

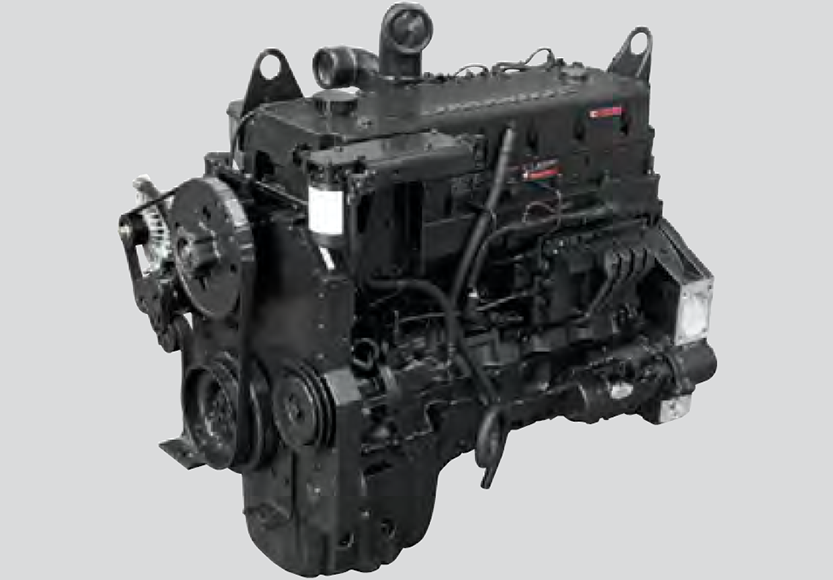

The Cummins QSM11 powerplant comprises six cylinders with 125 mm bore and 147 mm stroke, displacing 10.8 litres. The watercooled, four-cycle, turbocharged, charge air-cooled direct injection engine with electronic controls delivers proven reliability in demanding applications. The unit operates from a 362-litre fuel tank enabling extended operational periods between refuelling, critical for remote mining locations.

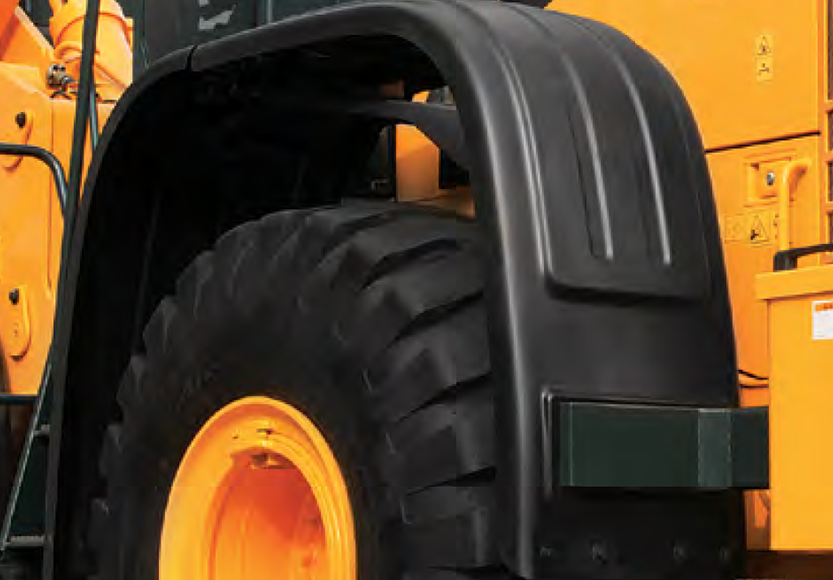

The 24,100 kg operating weight transfers across 26.5 R25, L3 tubeless loader design tyres as standard specification. Optional configurations include 26.5-25, 20PR, L3 tyres or 26.5-25, 20PR, L5 tyres for severe applications with sharp rock, accommodating varied ground conditions throughout Southern Africa.

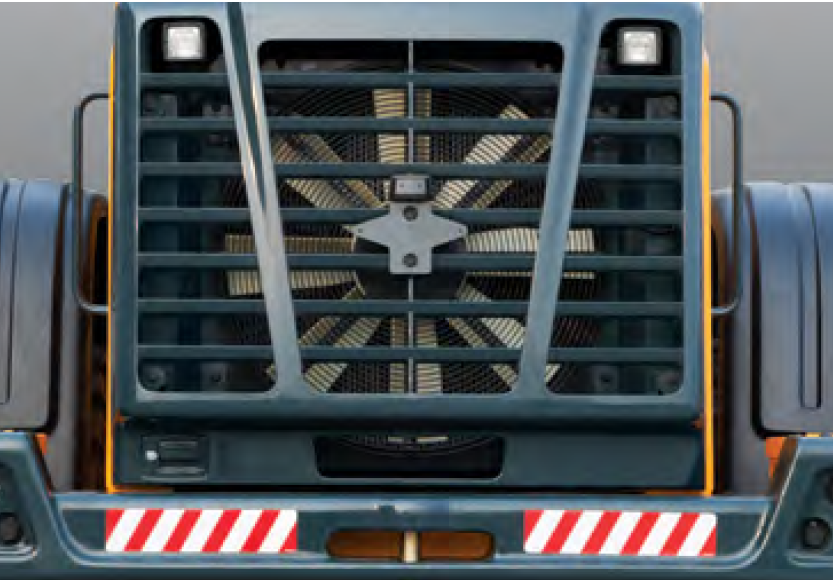

The hydraulic system executes complete bucket sequences in 9.8 seconds: 5.9 seconds raising, 1.3 seconds dumping, and 2.6 seconds lowering, maintaining productivity in continuous truck-loading operations. Regular maintenance benefits from 5,000-hour hydraulic oil change intervals whilst the reversible cooling fan integrates into the rear service door which swings open over 45 degrees for straightforward engine compartment access.
| Specification |
| Engine |
| Net Power |
| Max Power |
| Operating Weight |
| Bucket Capacity (Heaped) |
| Bucket Breakout Force |
| Tipping Load (Straight) |
| Fuel Tank Capacity |
| Wheelbase |
| Standard Tyres |
| Maximum Travel Speed (4th) |
| HL775-9S |
| Cummins QSM11, Tier 3 |
| 213kW (285HP) @ 2,000rpm |
| 256kW (343HP) @ 1,800rpm |
| 24,100 kg |
| 4.5 m³ |
| 20,200 kg |
| 19,350 kg |
| 362 litres |
| 3,500 mm |
| 26.5 R25, L3 |
| 37.0 km/h |
