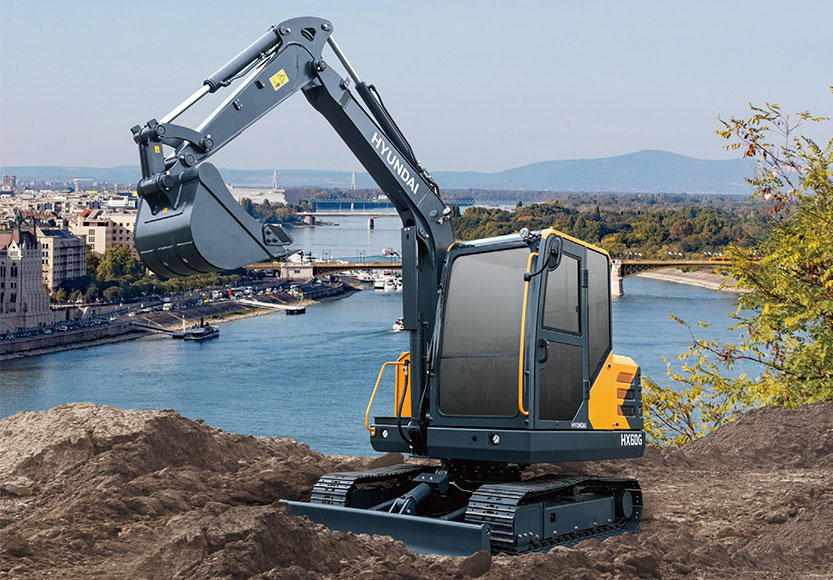

The HX60G handles diverse compact excavation operations including urban utility trenching, residential foundation excavation, landscaping grading and shaping, agricultural drainage installation, and confined space demolition throughout Southern African construction sites. The versatile working range achieves 5,946 mm maximum digging reach, 5,811 mm maximum digging reach on ground, and 3,812 mm maximum digging depth, whilst maximum vertical wall digging depth reaches 2,760 mm, accommodating varied excavation requirements typical of urban infrastructure projects.
The excavation performance delivers 52 kN bucket digging force and 32 kN arm digging force, managing compacted soils, rocky substrates, and challenging ground conditions encountered throughout regional operations. Maximum digging height reaches 5,962 mm whilst maximum dumping height achieves 4,071 mm, facilitating efficient material loading into trucks and spoil management across confined construction sites.
The full hydrostatic travel system with axial piston motors and planetary reduction gear delivers maximum 4.7 km/h travel speed in both low and high ranges, whilst 30-degree gradeability enables operation across sloped terrain. The two-speed travel system provides precise positioning at low speed and efficient transit at high speed. Minimum swing radius measures 2,030 mm whilst tail swing radius reaches 1,670 mm, enabling operation in restricted urban environments where space constraints prove challenging.
The pilot pressure-operated joystick controls with detachable safety lever provide almost effortless and fatigue-less operation following ISO control patterns. Two traveling levers with pedals enable intuitive machine movement, whilst electric dial-type engine throttle allows precise engine speed control for varied applications.

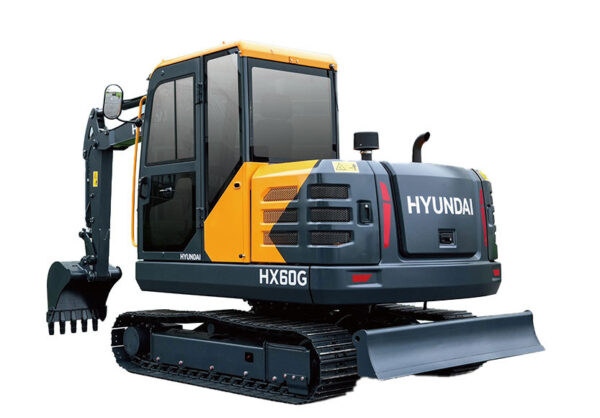

Mini excavators are versatile compact earthmoving machines designed for confined space excavation, trenching, landscaping, and utility installation across urban construction, residential developments, and agricultural operations requiring maneuverability and precision. The Hyundai HX60G generates 36.3 kW (100 rpm) from its Yanmar 4TNV94L Tier 2 engine, managing 0.25m³ bucket capacity for municipal infrastructure projects, residential construction, landscaping operations, and utility installations. We supply the HX60G to Southern African contractors with comprehensive technical support and genuine parts availability through our regional service network.
This 5,850 kg mini excavator excels in confined space operations requiring exceptional maneuverability and precise excavation control throughout the region.
The Yanmar 4TNV94L powerplant comprises four cylinders with water-cooled configuration meeting Tier 2 emission standards. The efficient diesel combustion significantly enhances performance whilst multi-stage fuel filtration ensures engine durability and reduces harmful gas emissions for environmentally friendly operation throughout Southern Africa.
The 5,850 kg operating weight distributes optimally across the X-leg type center frame integrally welded with reinforced box-section track frames. The pentagonal box-type track frames with 34 shoes each side, one carrier roller each side, and five track rollers each side provide a stable platform for excavation operations. Standard 400 mm track shoes offer optimal flotation, with optional 450 mm wide track shoes available for soft ground conditions.
The hydraulic system operates with variable displacement piston main pumps delivering maximum 87.6 litres per minute at 57.6 litres per minute flow rate. The load sensing system operates at 24.5 MPa MCV operating pressure, 28.0 MPa swing motor operating pressure, and 24.5 MPa travel motor operating pressure. The boom cylinder measures 70×50×590 mm (2 cylinders), arm cylinder 65×45×550 mm (1 cylinder), and bucket cylinder 55×40×450 mm (1 cylinder).
The brand new intelligent cabin reduces operator fatigue through improved sealing and convenience. Standard equipment includes suspension seat, push-button ignition start replacing traditional key, five air conditioning vents enhancing cooling and heating performance, and openable front window. The brand new LED cluster provides password unlocking, adjustable throttle speed for each gear, fault reminders, and displays for water temperature, engine speed, fuel level, and working hours. The centralized console features temperature display, standard radio, USB, Bluetooth, and entertainment features for operator comfort during extended operational periods.
| Specification |
| Engine |
| Gross Power |
| Net Power |
| Operating Weight |
| Bucket Capacity |
| Maximum Digging Reach |
| Maximum Digging Depth |
| Bucket Digging Force |
| Fuel Tank Capacity |
| Hydraulic Tank Capacity |
| Standard Track Shoe Width |
| HX60G |
| Yanmar 4TNV94L, Tier 2 |
| 36.3 kW @ 100 rpm |
| 34.3 kW @ 100 rpm |
| 5,850 kg |
| 0.25 m³ |
| 5,946 mm |
| 3,812 mm |
| 52 kN |
| 75 litres |
| 75 litres |
| 400 mm |
