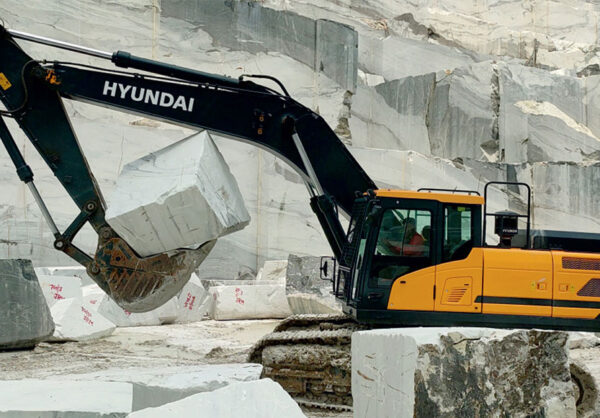

The HX380L proves particularly effective in specialized block handling operations at granite and marble quarries throughout Southern Africa. Its 21.1 tonne arm crowd force and reinforced linkage system manage the controlled extraction and placement of dimensioned stone blocks weighing several tonnes. The bucket capacity range of 1.44 to 2.32 m³ accommodates both precision work and high-volume material movement.
The machine’s hydraulic system features a two-speed axial piston motor with brake valve and parking brake for precise travel control on quarry ramps and uneven terrain. The fully automatic pilot system with single-acting piping kit for the boom/arm and double-acting piping kit for the bucket enables smooth, controlled movements essential for handling valuable stone products.
Consider the HX380L if your operation requires sustained heavy digging force in hard rock applications, handles dimensional stone blocks, or demands extended reach for deep excavation work. Operations focused primarily on standard earthmoving without specialized block handling requirements may find sufficient capability in smaller capacity excavators.

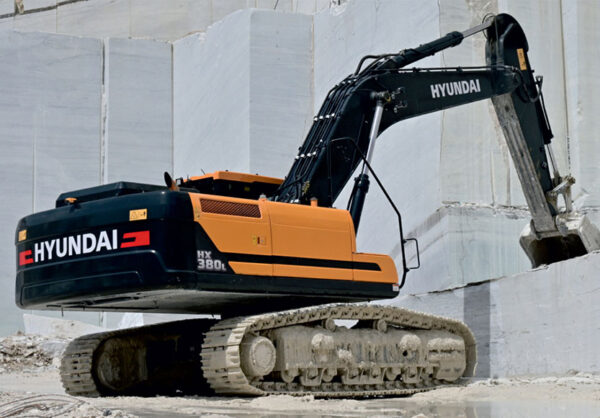

Excavators form the backbone of material extraction and processing operations across mining, quarrying, and specialized construction applications. The Hyundai HX380L delivers 194 kW (260 HP) of gross power through its Hyundai HM8.3 engine, handling continuous heavy-duty work in block handling, quarrying, and large-scale earthmoving projects. We supply the HX380L to Southern African operations with comprehensive technical support and genuine parts availability from our regional network.
This 37,200 kg excavator excels in demanding applications where sustained digging force and extended reach determine productivity. The machine’s specialized design addresses the unique requirements of granite and marble block handling operations while maintaining versatility for general excavation work.
The Hyundai HM8.3 turbocharged, charge air cooled, direct injection engine produces 194 kW gross power at 2,200 rpm with 1,520 Nm peak torque at 1,300 rpm. The machine’s 8.3-liter displacement delivers consistent performance across varying load conditions while meeting emission requirements.
The hydraulic system operates two variable displacement tandem axis piston pumps supplying 2×415 L/min at maximum flow. Main relief pressure reaches 350 kgf/cm² (4,982 psi) for pilot circuits and 380 kgf/cm² (5,400 psi) for swing circuits. Hydraulic oil capacity totals 414 liters, with a 5,000-hour service interval significantly reducing maintenance frequency compared to conventional systems.
The X-leg type carrier frame with integrally welded reinforced box-section track frames distributes the machine’s operating weight across 48 track links per side. Standard triple grouser shoes measure 600 mm width, with options for 700 mm width where ground pressure reduction proves necessary.
| Specification |
| Engine |
| Gross Power |
| Operating Weight |
| Bucket Capacity |
| Boom Length |
| Arm Length |
| Maximum Digging Reach |
| Bucket Digging Force |
| Hydraulic System Capacity |
| Track Shoe Width (Standard) |
| HX380L |
| Hyundai HM8.3, Tier 3 |
| 194kW (260HP)@2,200rpm |
| 37,200 kg |
| 1.44-2.32 m³ |
| 6.45 m (21′ 2″) |
| 3.2 m (10′ 6″) |
| 11,215 mm |
| 23.5 tonnes |
| 414 liters |
| 600 mm |
