The Hyundai HX380L is engineered for heavy-duty applications, featuring a 37,200 kg operating weight that provides the essential stability required for deep excavations and large-scale site preparation.

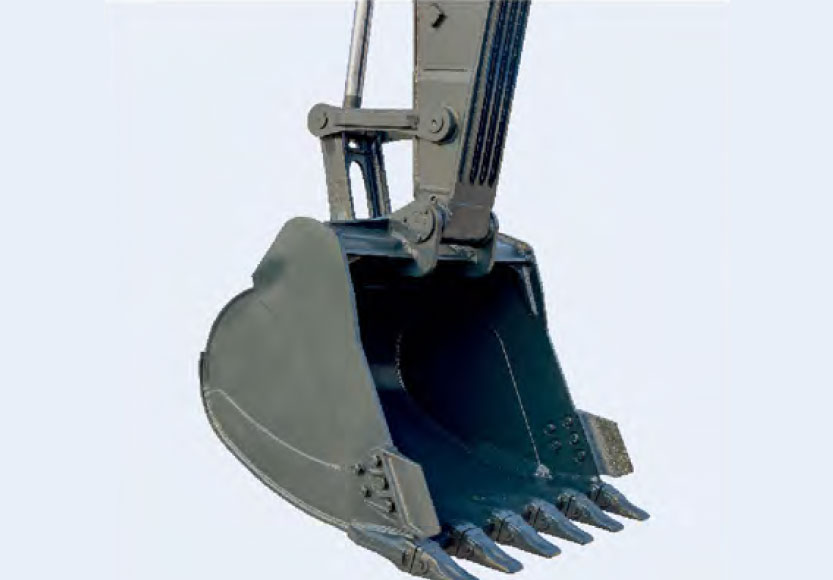

This machine is powered by a dependable Hyundai HM8.3 engine, delivering a net power of 190 kW (255 HP) to ensure you maintain consistent torque and cycle speeds throughout the day. By balancing this power with a large bucket capacity of up to 1.62 m³, the HX380L allows you to move higher volumes of material per cycle.
This combination is particularly effective in bulk earthmoving and quarrying support, where high breakout forces are necessary to penetrate dense or compacted materials efficiently.

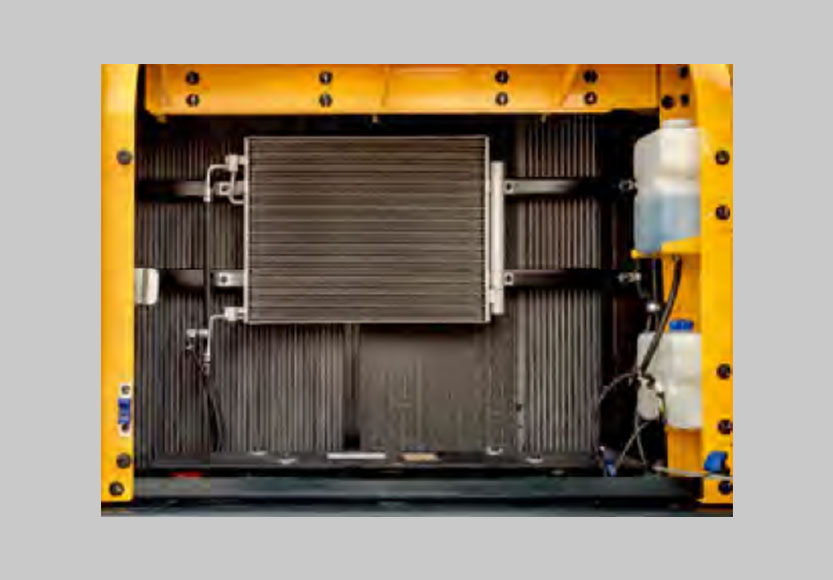

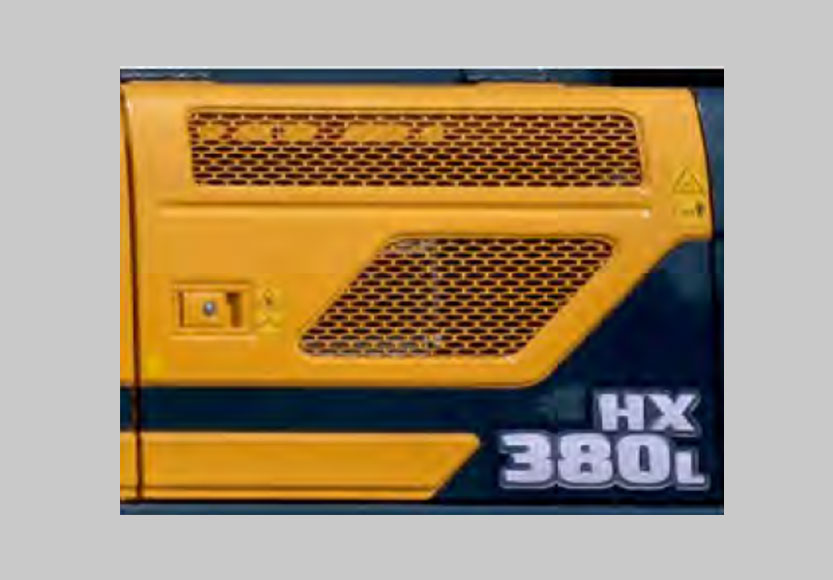

The HX Series is built to withstand the mechanical stresses of continuous loading through a reinforced subframe and high-strength cooling modules. A durable cooling system improves airflow and heat dissipation, preventing the engine and hydraulics from overheating during long shifts in high-ambient temperature environments.
To protect the machine’s longevity, design includes high-pressure hoses with improved heat resistance and reinforced pins to reduce component wear in abrasive conditions.
These durability features work together to minimize unplanned downtime, giving you a more reliable asset that stays productive on the job site.
Operator-Focused Comfort and Safety

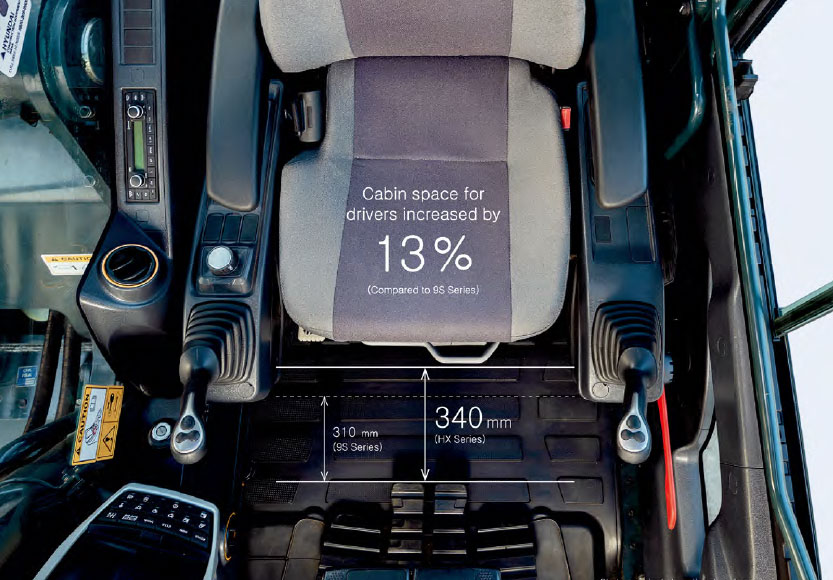

The HX380L features an ISO high-visibility cabin designed to keep you focused and productive during multi-shift operations.
The Automatic Swing Brake locks the upper structure when the control lever is in neutral, preventing “swing drift,” while the Boom and Arm Holding System uses specialized valves to maintain cylinder pressure, stopping the attachment from creeping or dropping unexpectedly during pauses in operation. Together, these features ensure the machine remains precisely where you position it, significantly reducing the risk of site accidents during lifting or pipe-laying tasks.
Inside, an interactive 8-inch touchscreen serves as the centralized command center, allowing you to manage climate control, monitor machine diagnostics, and view urea levels from a single interface.
By streamlining machine management and providing a quiet, climate-controlled workspace, the HX380L helps maintain high levels of situational awareness and safety from start to finish.
| Specification |
| Engine |
| Gross Power |
| Operating Weight |
| Bucket Capacity |
| HX380L |
| Hyundai HM8.3 |
| 194kW (260HP)@2,200rpm |
| 37,200 kg |
| 1.62 m³ |
