The R220LS manages excavation projects processing 600-800 m³ daily, suitable for large-scale road construction, mining support operations, and bulk earthworks. Its 9,840 mm maximum reach and 6,600 mm maximum digging depth handle deep foundation excavation, utility trenching, and material loading operations without requiring additional equipment or multiple mobilizations.
The four operating modes optimize machine response across varying applications. H Mode delivers maximum power and accelerated cycle times for truck loading operations. S Mode balances performance with fuel consumption for general excavation tasks. ECO Mode prioritizes fuel economy during extended operating periods. Breaker Mode maintains optimal hydraulic pressure for hammer attachments without manual adjustment between operations.
The swing priority function combined with hydraulic flow summation accelerates combined operations by directing hydraulic flow to the highest-demand function. This technology reduces cycle times during truck loading operations where simultaneous swing and boom movements occur continuously, improving productivity by up to 12% compared to conventional systems.

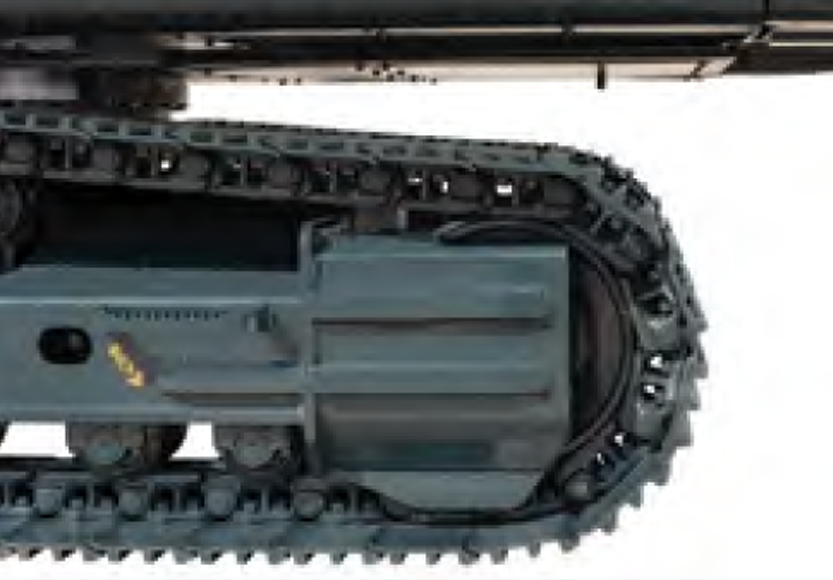

The 21,100 kg traction force provides excellent mobility across uneven terrain and steep access roads. Ground pressure of 0.47 kg/cm² through standard 600mm triple grouser shoes enables work on prepared surfaces without excessive ground disturbance, while the 35-degree gradeability handles challenging site topography common to hillside developments and mining operations.
Consider the R220LS if your operations require consistent excavation depths of 5-6.5 meters, regular lift capacities exceeding 3,500 kg at 4.5 meter reach, and daily production volumes of 600-800 m³. Projects requiring excavation beyond 7.5 meters depth or bucket capacities exceeding 1.2 m³ should evaluate larger capacity excavators.
Heavy-duty excavators combine substantial digging forces with extended reach capabilities for large-scale earthmoving, mining support, and infrastructure development. The Hyundai R220LS Smart Plus delivers 110 kW (148 HP) gross power through its Cummins 6BTA-5.9-C engine, achieving bucket capacities to 1.05 m3 and maximum digging depths exceeding 6.4 meters in demanding Southern African construction environments. We supply the R220LS with comprehensive technical support and genuine parts availability through our regional service network.
This 22,000 kg excavator suits contractors managing daily excavation volumes of 600-800 cubic meters across highway construction, mining operations, and
heavy civil projects where productivity and durability determine project profitability.

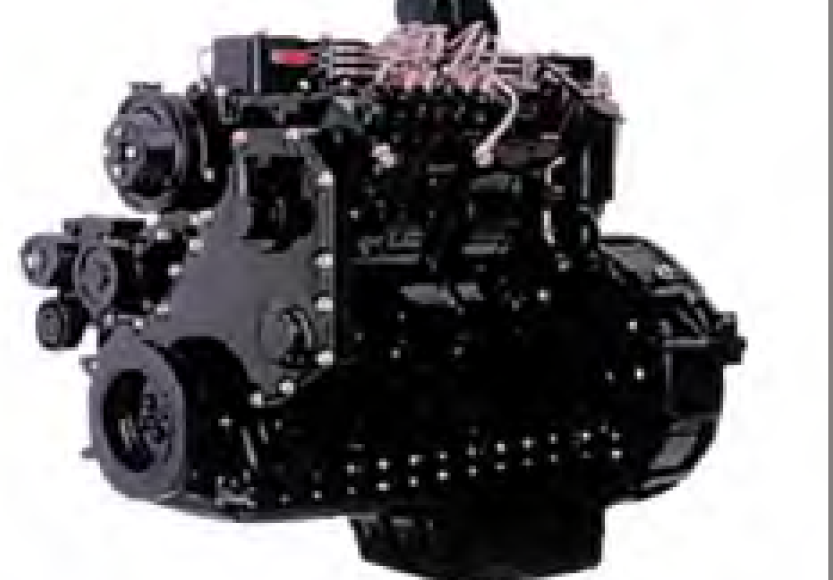

The Cummins 6BTA-5.9-C engine consumes approximately 18-22 liters of fuel per hour under typical load conditions, with a 340-liter tank supporting full-day operation between refueling. The machine’s 22,000 kg operating weight includes standard equipment and 1.05 m³ general purpose bucket.
The main hydraulic system features two variable displacement piston pumps delivering 2×220 L/min combined flow at system pressures to 330 bar for implement circuits. The cross-sensing and fuel-saving pump system continuously monitors hydraulic demand, adjusting pump output to match actual requirements and reducing parasitic losses during light-load operations.
Routine servicing occurs every 250 hours with ground-level access to all critical service points. The hinged-type front glass guard enables rapid cleaning without tools, maintaining operator visibility in high-dust environments common to quarrying and mining support operations.
| Specification |
| Engine |
| Gross Power |
| Operating Weight |
| Bucket Capacity |
| Maximum Digging Depth |
| Maximum Reach |
| Bucket Digging Force |
| Fuel Tank Capacity |
| Hydraulic Oil Service |
| Maximum Travel Speed |
| R220LS Smart Plus |
| Cummins 6BTA-5.9-C |
| 110 kW (148 HP) @ 2,000 rpm |
| 22,000 kg |
| 0.95 – 1.05 m³ |
| 6,600 mm |
| 9,840 mm |
| 13,591 kg (SAE) |
| 340 liters |
| 5,000 hours |
| 5.3 km/h |
