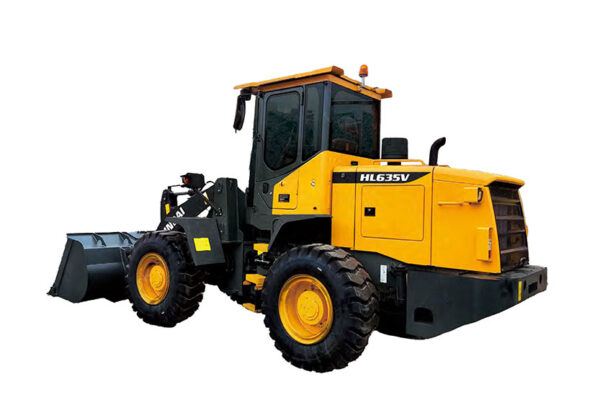

The Hyundai HL635VL is a purpose-built 10.4-tonne wheel loader designed to balance agility with heavy-duty output. Powered by a reliable 92 kW Weichai engine, the machine is engineered to operate with a 1.7 m³ standard bucket for efficient material movement.
It serves as a dependable workhorse for mid-sized operations, providing a stable platform for high-cycle loading while maintaining a compact footprint that allows it to navigate restricted jobsites without sacrificing breakout force or lifting stability.
This loader is optimized for high-cycle environments such as aggregate stockpiling, municipal roadwork, and agricultural material handling. Its design excels in load-and-carry operations, where speed and endurance are critical.
The combination of a 2,830 mm extended wheelbase and a 40-degree steering angle ensures the machine remains stable while maintaining a tight 5,710 mm turning radius, helping streamline workflows in confined loading bays or narrow farm passages.
The HL635VL combines a proven Weichai engine with a purpose-matched hydraulic system and power-shift transmission, creating a drivetrain configuration designed to sustain productivity across a range of operating conditions.
Safety and Control
The HL635VL is equipped with an air-over-hydraulic caliper service brake system that delivers dependable stopping performance matched to the machine’s operating weight and loading capacity. This braking configuration provides consistent control during repeated loading cycles.
Cab Environment and Operator Comfort
The operator cab is designed to support productivity throughout long working shifts. Standard air conditioning and heating maintain a comfortable working environment in both hot and cold climates, helping reduce operator fatigue. A built-in defroster improves windshield clarity in cold or humid conditions.
Structural Stability and Terrain Adaptability
The HL635VL’s chassis and axle configuration are engineered to maintain structural integrity when operating on uneven ground. An 11-degree rear axle oscillation allows the machine to adapt to irregular terrain while keeping all wheels in contact with the surface for improved stability and traction.
| Specification |
| Engine |
| Gross Power |
| Operating Weight |
| Bucket Capacity |
| HL635VL |
| Weichai WP6G125E22 |
| 92 kW @ 2,200 rpm |
| 10,400 kg |
| 1.7 m³ |
